Single Head Wooden Pallet Trenching Machine For Pallet Stringer

Author：delarryTime：2022-08-26Views：

Single Head Wooden Pallet Trenching Machine For Pallet Stringer

The signle head notcher machine also called wood pallet trenching machine or slotting machine, is used for making notching for American stringer pallet, the notching is used for forklift.



Main technical parameters

wood pallet stringer notching machine (3).jpg

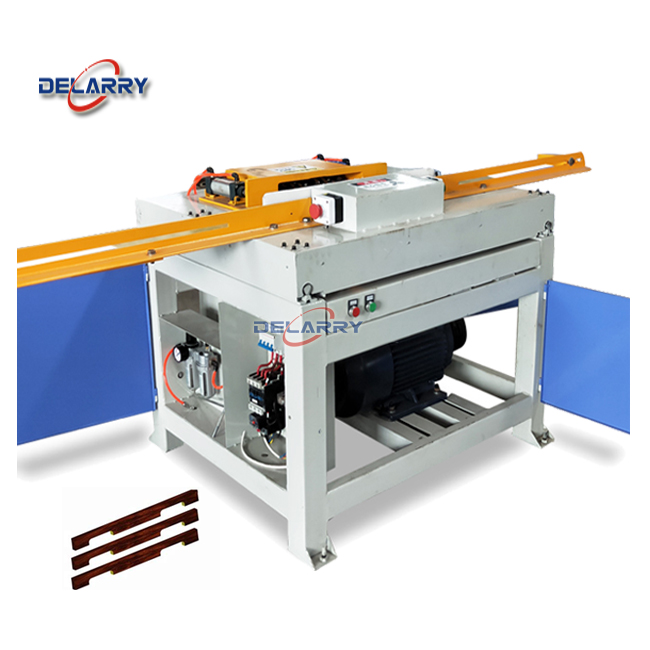

Single head wood pallet trenching machine

Motor Power:11kw

Capacity:800pcs/hr

Dimension:1200*1100*1200mm

Rated power:50Hz

Rotate speed:500RPM

Weight:550kg

Board   length:<1800mm

Width:90mm;thickness:40-60mm

Slot depth:30-50mm

Slot width:200-350mm

Working principle:Continuous feeding and discharging,double notch done

wood pallet trenching machine (4).jpg

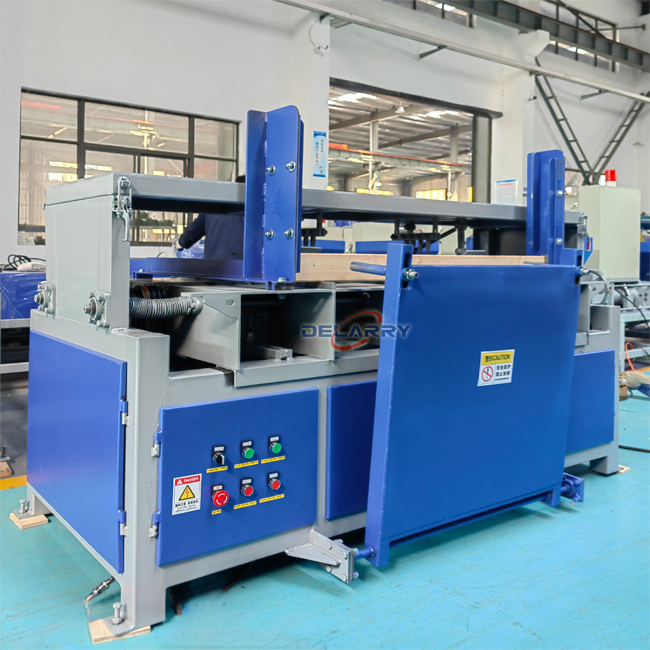

Double head pallet trenching machine

Motor Power:30kw

Capacity:1800pcs/hr

Dimension:2300*1300*1600mm

Rated power:50Hz

Rotate speed:500RPM

Weight:1000kg

Board length:500-1500mm

Notching depth:20-60mm, Notching width:220mm

Working principle:Continuous feeding and discharging,double notch done

wood pallet stringer notching machine (3).jpg


wood pallet stringer notching machine (1).jpg
